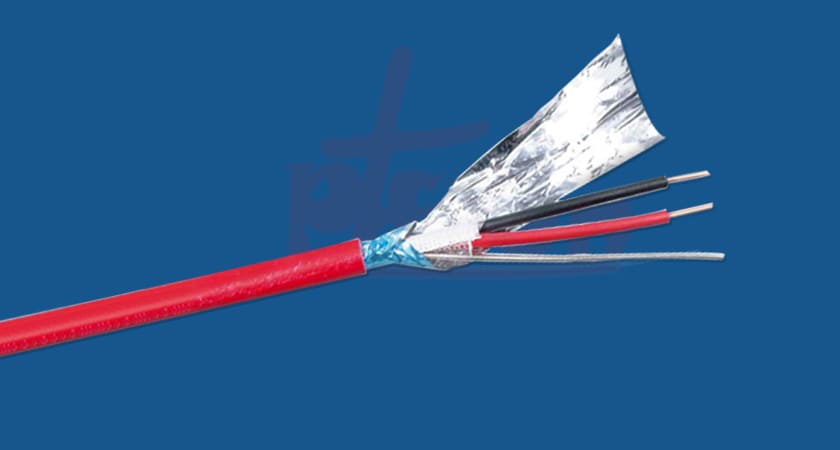

PTFE INSULATED HR CABLE PTFE Insulated HR Cable, a key component in various industries, offers exceptional thermal and electrical properties that make it a preferred choice for demanding applications. This article provides a comprehensive overview of PTFE insulation, highlighting its unique characteristics and advantages. From the manufacturing process to its diverse applications across sectors such as aerospace, medical, and telecommunications, the versatility and reliability of PTFE insulated cables are explored. Additionally, insights into maintenance considerations, industry standards, and future technological trends shed light on the evolving landscape of PTFE insulated HR cables.

These PTFE insulated H.R.cables can withstand a wide temperature range from -65 Degree C to + 250 Degree C. They are chemically as well as environmentally stable. They match the requirements as per JSS-51100/MII-C17. PTFE co-axial cables (RF CABLES) are for use in Military, Telecommunication & other High reliability Equipments..

1. Introduction to PTFE Insulated HR Cable

Definition and Overview

If you're in the market for cables that can take the heat and stand up to harsh chemicals, then PTFE Insulated HR Cable might just be your superhero. PTFE, or polytetrafluoroethylene for the tongue-twister enthusiasts, is a high-performance synthetic polymer known for its impressive properties.

Historical Development

Back in the day, when folks needed cables that could handle extreme temperatures and chemical attacks without breaking a sweat, PTFE stepped in with its superpowers. Developed in the early 20th century by DuPont, PTFE insulation quickly became the go-to choice for industries where durability and reliability are non-negotiable.

2. Properties and Advantages of PTFE Insulation

High Temperature Resistance

PTFE insulation laughs in the face of scorching temperatures. It can handle heat like a boss, making it a top pick for applications where things get seriously hot.

Chemical and Environmental Resistance

Spilled some acid on your cable? No worries, PTFE has your back. Its chemical resistance is the stuff of legend, making it a stalwart defender against corrosive substances.

Low Dielectric Constant

Want to keep those electrical signals flowing smoothly? PTFE's low dielectric constant ensures minimal signal loss, making it a favorite for industries where signal integrity is crucial.

3. Applications of PTFE Insulated HR Cable

Aerospace Industry

When you're soaring through the skies, you want cables that won't let you down. PTFE insulated cables are the top choice for aircraft wiring due to their reliability and durability.

Medical Equipment

In the world of healthcare tech, precision and safety are paramount. PTFE cables are trusted for their high-performance characteristics in medical devices where reliability is critical.

Telecommunications

In the fast-paced world of telecommunications, reliable signal transmission is key. PTFE insulated cables ensure minimal signal loss, making them a favorite for high-frequency applications.

4. Manufacturing Process of PTFE Insulated HR Cable

Extrusion of PTFE Insulation

First up, the PTFE insulation is extruded onto the conductor with precision, ensuring a uniform and robust coating.

Conductor Preparation

The conductor undergoes meticulous preparation to ensure optimal adhesion with the PTFE insulation, setting the stage for a strong and reliable connection.

Insulation Curing Process

Once the conductor is snugly tucked into its PTFE blanket, the insulation curing process kicks in, bonding the components together and creating a cable ready to take on the world.

5. Comparison with Other Insulation Materials

Silicone Insulation

Silicone insulation is known for its flexibility and resistance to high temperatures, making it suitable for a wide range of applications. However, compared to PTFE insulation, silicone may not offer the same level of chemical resistance and durability.

PVC Insulation

PVC insulation is commonly used due to its low cost and easy availability. While it provides good electrical insulation, it may not perform as well under extreme temperatures or harsh environments as PTFE insulation. PVC is also less resistant to chemicals and may degrade over time.

6. Standards and Regulations for PTFE Insulated HR Cable

Industry Standards Compliance

PTFE insulated HR cables must adhere to industry standards such as ASTM and IEC to ensure quality and safety. Meeting these standards guarantees that the cables are manufactured to specific requirements and undergo rigorous testing procedures.

Regulatory Requirements

Regulatory bodies like UL and CSA set guidelines for the use of PTFE insulated HR cables in different applications. Compliance with these regulations is crucial to ensure that the cables meet safety standards and perform reliably in various environments.

7. Maintenance and Installation Considerations

Proper Handling and Storage

To maintain the integrity of PTFE insulated HR cables, it is essential to handle them with care and store them in suitable conditions. Avoid bending or twisting the cables excessively, and store them away from moisture, heat, and direct sunlight to prevent damage.

Inspection and Testing Procedures

Regular inspection and testing of PTFE insulated HR cables are necessary to identify any potential issues or faults. Conducting tests for insulation resistance, continuity, and voltage withstand capability can help prevent electrical failures and ensure the cables are functioning correctly.

8. Future Trends in PTFE Insulated HR Cable Technology

Advancements in Material Science

As material science evolves, researchers are constantly exploring new formulations and additives to enhance the performance of PTFE insulation. Innovations in nanotechnology and composite materials may lead to improved electrical and mechanical properties in future PTFE insulated HR cables.

Enhanced Performance Capabilities

The future of PTFE insulated HR cables may involve advancements in insulation thickness, temperature resistance, and flexibility. Engineers are working towards developing cables with higher current-carrying capacities and enhanced resistance to environmental factors, paving the way for more efficient and reliable electrical systems.In conclusion, PTFE Insulated HR Cable stands out as a reliable and high-performing solution for a wide range of electrical applications. Its outstanding properties, efficient manufacturing process, and compliance with industry standards make it a top choice for industries seeking durable and efficient cabling solutions. As advancements in material science continue to drive innovation, the future of PTFE insulated cables holds the promise of even greater performance capabilities. Stay informed and prepared to harness the full potential of PTFE insulation in adapting to evolving technological needs across various sectors.
